# B Tree Basics - Slides

generated with: https://www.cs.usfca.edu/~galles/visualization/BPlusTree.html, please feel free to explore!

# A simple 2-way B+ tree

assumptions:

*non-decreasing order*and*max degree*of 3- elements(N) are 1, 2, 3, 4, 5
- **sibling pointers (B-link borrowed)

## Insertion

Inserting, find target leaf and insert the keys `1`

and `2`

target == root.

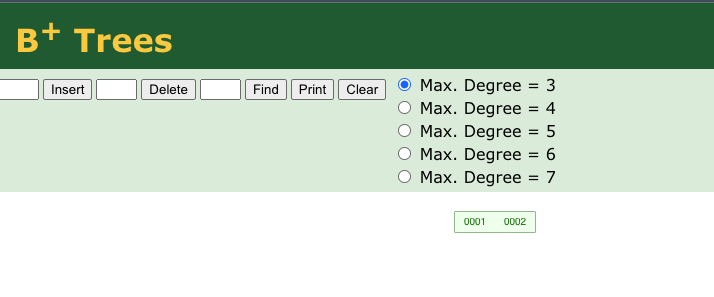

**[figure 1]**

When we insert key `3`

? we have our first *overflow* causing a split:
`2`

is *promoted* and contents are split in two, we recurse from the bottom up.

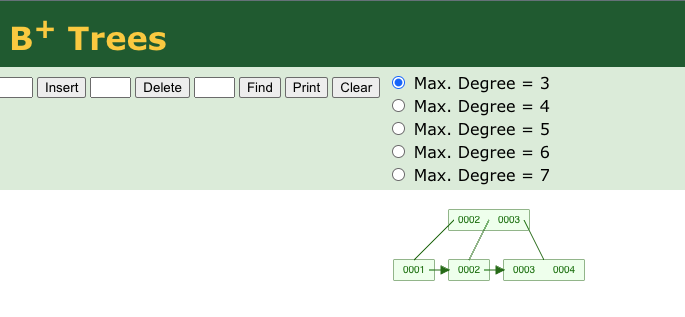

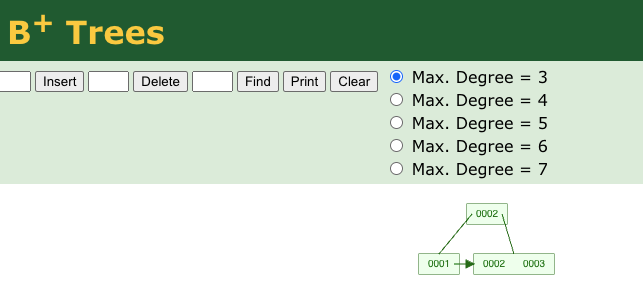

**[figure 2]**
What if we add key `4`

our tree looks weird doesn’t it:

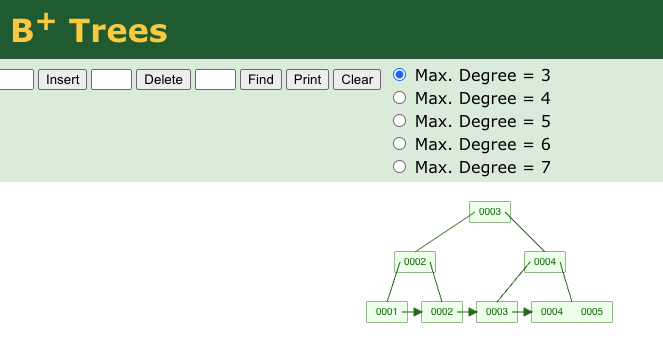

and now have to “rebalance” our tree with incoming key `5`

:

**[figure 3]**

## Search

searching is an Olog(N) operation!

just a reminder this is *really powerful* if n = 1 billion, dominance:

- lg(n) = 0.030 μs
- f(n) = 1 sec
- nlg(n) = 29.9 sec
- n ** 2 = 31.7 years
- 2 ** n = :/

with a branching factor of 1001 and height 3 can store over one billion keys: num keys = branching factor ^ height - 1 * branching factor - 1

point and range queries follow the same logarithmic path.

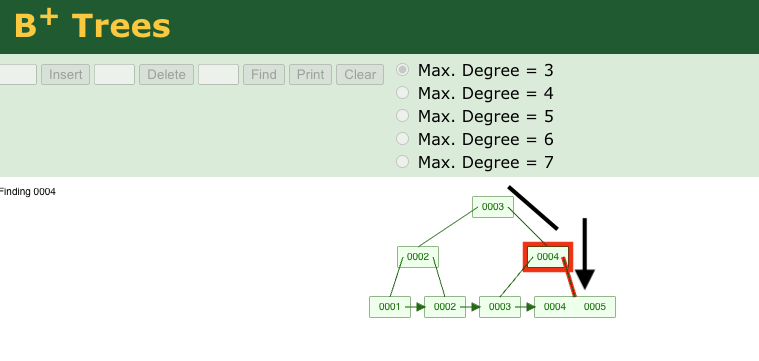

**[figure 4]**

## Deletion

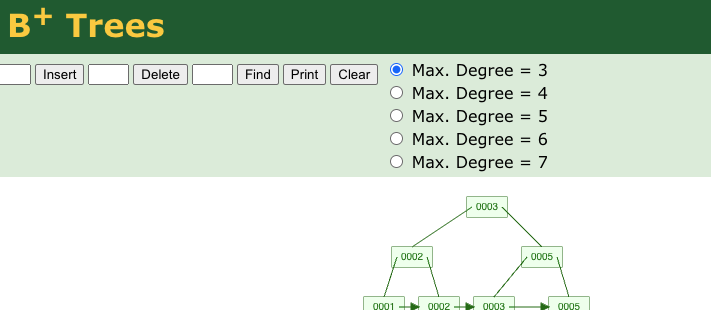

Let’s remove 4.

First we find 4 using binary search, then re-arrange our pointers and rebalance:
**[figure 5]**

Rebalancing involves restoring our ordered structure and keeping pointers valid and performing a merge or (*redistribution.)
